Metal Anodes — Cu Electroplating

High-PurityCopperAnodes & Cathodes

7 high-purity copper anode products — Cathodes (≥99.99%), Squares (1×1, 2×2, 4×4), Mini Cylinders (electrolytic, O₂-free, P-alloyed), Balls (15–60mm), Elliptical Profiles, Planks, and Wire. Custom dimensions available. Karachi-based supplier since 1995.

≥99.99% Purity7 Product FormsElectrolytic · O₂-Free · P-AlloyedCustom DimensionsNationwide Delivery
Request a Quote →Browse All Products ↓
Copper anodes Pakistan Libras Chemical
Copper anodeCopper anodeCopper anode
7Products
Cu 29Atomic No.
≥99.99%Purity
7Products
Cu 29Atomic Number
≥99.99%Purity
CustomSizes Available
Jump directly to product
Copper Cathodes ≥99.99%Copper Squares 1×1/2×2/4×4Mini Copper CylindersCopper Balls & BeadsCopper Profiles — Elliptical & Dog BoneCopper PlanksCopper Wire
Complete Range

All Copper Anode Products

High-purity copper anodes in multiple forms — designed for every electroplating tank configuration. Available from Libras Chemical, Karachi.

Get a Quote →
Copper Cathodes Pakistan electroplating 01
≥99.99%Purity
Primary Feedstock / Anode

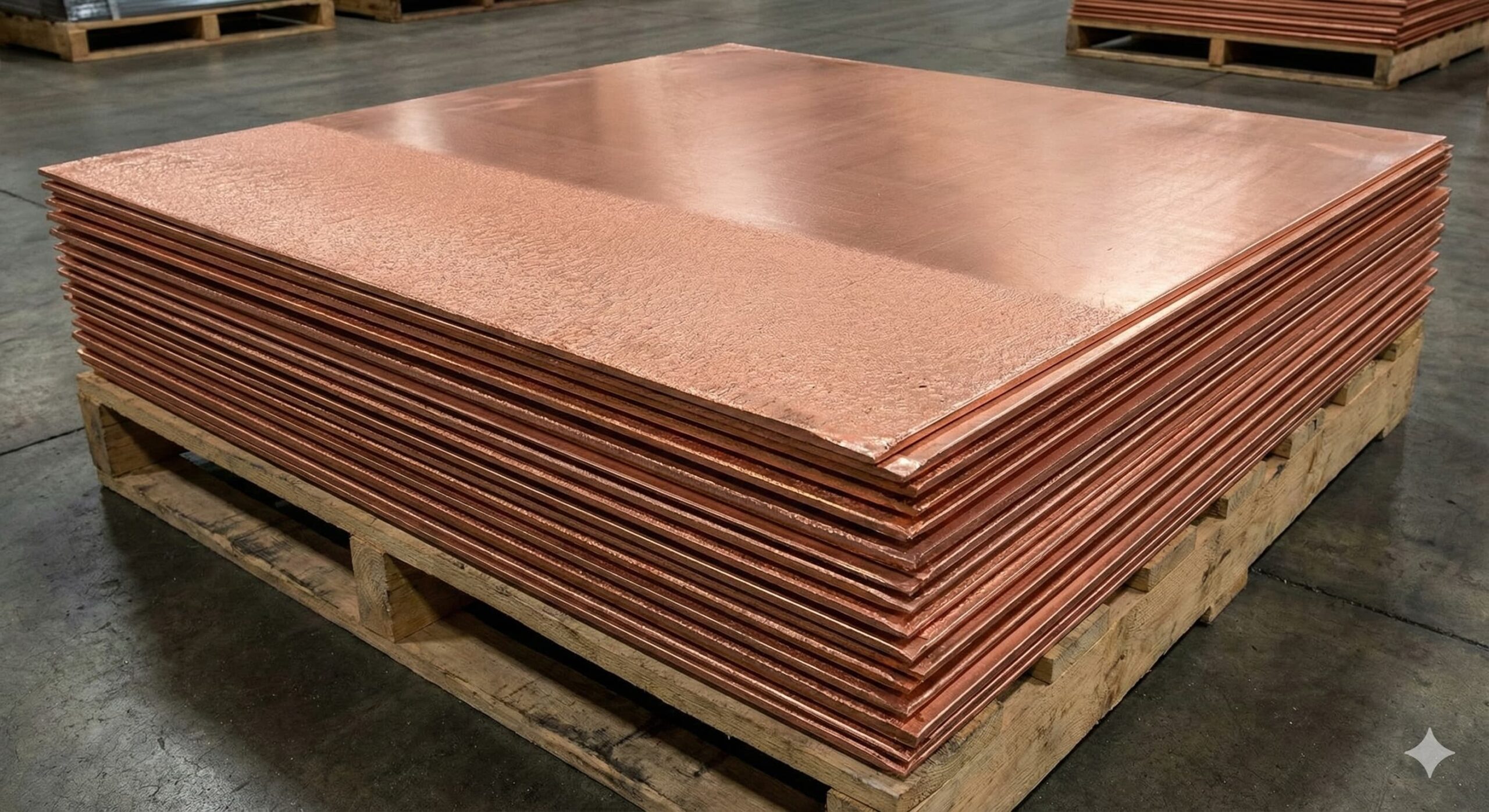

Copper Cathodes

High-purity primary copper cathodes used as feedstock for electroplating and anode supply. Standard 1000×1000 mm size — can be customized with drilling or anode hooks.

Chemical Symbol: Cu
Purity: Minimum 99.99% pure copper
Standard Size: Approx. 1000 mm × 1000 mm (custom sizes available)
High-purity feedstock for alkaline copper plating baths
Custom size and drilling available on request
Shipped on pallets — ready stock
Applications
Alkaline copper platingAcid copper platingIndustrial feedstockCustom anode fabrication
Request Quote → Get Specs
Copper Squares Pakistan electroplating 02
≥99.99%Purity
Basket-Fill Anode

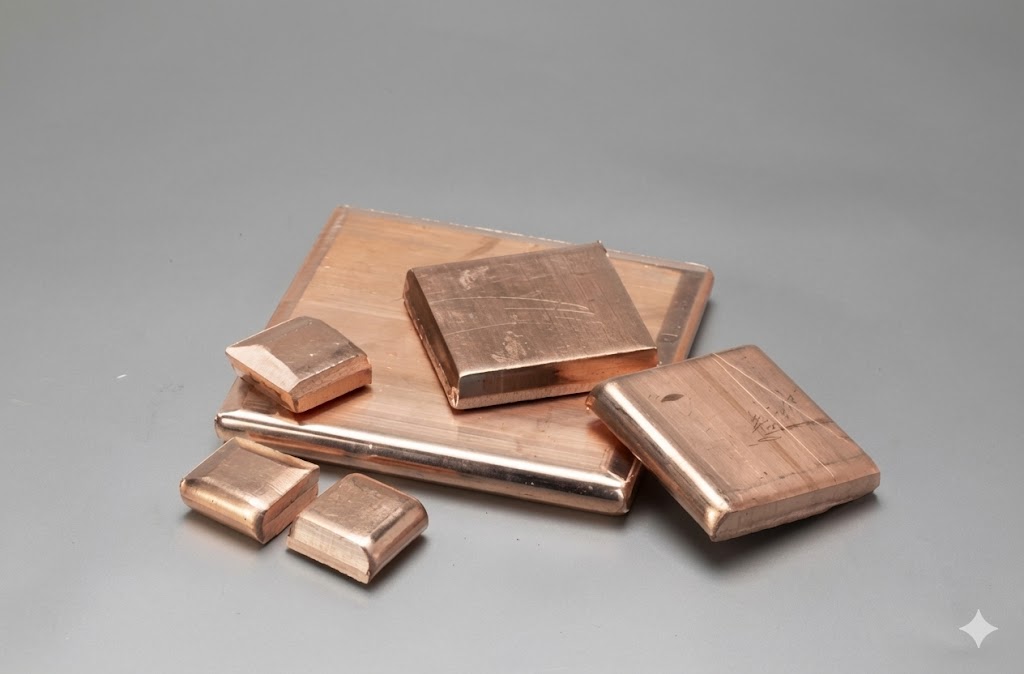

Copper Squares

Precision-cut copper squares from premium cathode material. Three sizes for titanium basket use, foundry applications, and precise dosing.

Chemical Symbol: Cu
Purity: Minimum 99.99% pure copper
Sizes: 25×25 mm, 50×50 mm, 100×100 mm
Ideal for titanium basket anodes in electroplating tanks
Also suitable for foundry applications and precise dosing
Available in 25 kg bags or larger drums
Applications
Acid copper platingTitanium anode basketsFoundry usePrecise copper dosing
Request Quote → Get Specs
Mini Copper Cylinders Pakistan electroplating 03
≥99.99%Purity
Mini Cylinder Anode

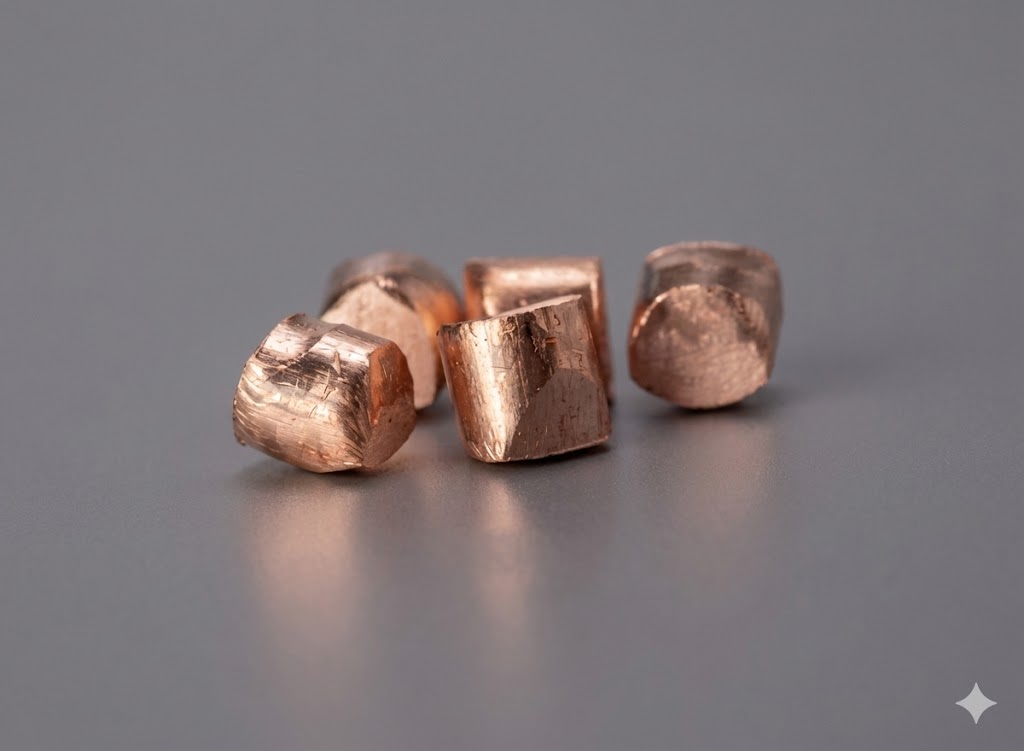

Mini Copper Cylinders

Small cylindrical copper forms in three copper types for every plating requirement — electrolytic, oxygen-free, and phosphorus-alloyed.

Chemical Symbol: Cu
Purity: Minimum 99.99% pure copper
Diameters from 5–20 mm; lengths from 5–40 mm, with custom dimensions possible.
Electrolytic copper for high-purity general plating
Oxygen-free copper — low-oxygen variant, reduced sludge
Phosphorus-alloyed copper — enhanced for bright finishes and undercoats
Used in titanium baskets with anode bags
Applications
Acid copper platingBright copper finishesDecorative copperReduced-sludge processes
Request Quote → Get Specs
Copper Balls & Beads Pakistan electroplating 04
≥99.99%Purity
Spherical Anode

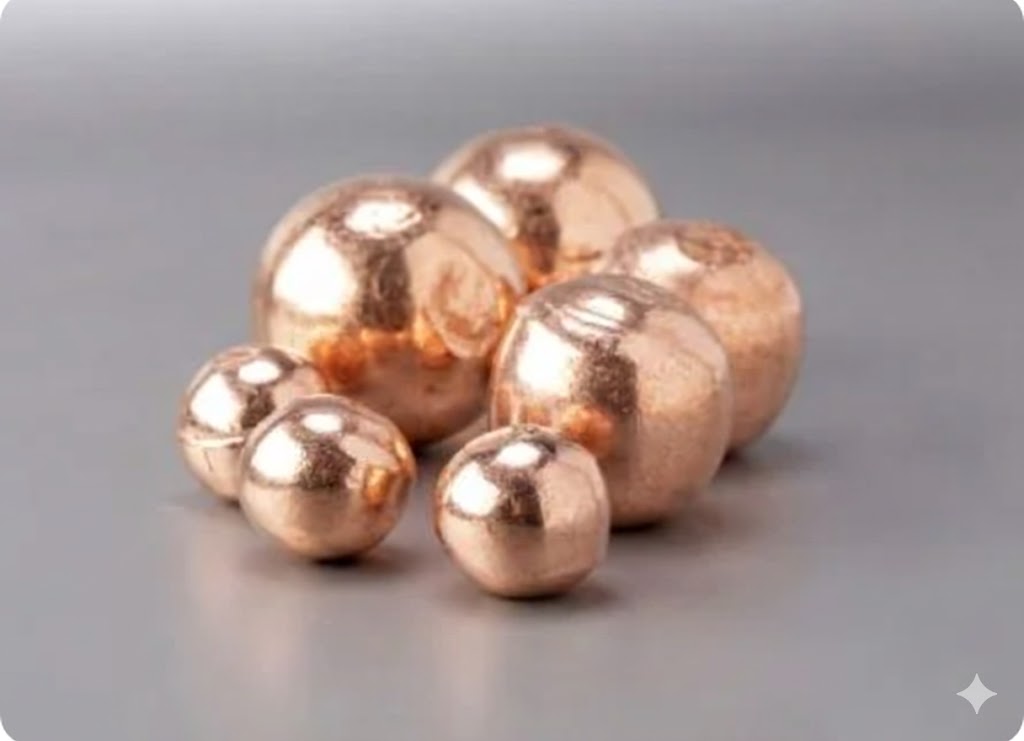

Copper Balls & Beads

Spherical copper forms for consistent anode surface exposure and easy handling. Spherical shape enhances electrolyte circulation and minimizes bridging.

Chemical Symbol: Cu
Purity: Minimum 99.99% pure copper
Diameters Available: From 15 mm up to 60 mm.
Enhanced electrolyte circulation around spherical surfaces
Minimal bridging inside baskets — uniform distribution
Total copper consumption with minimal waste
Applications
Copper anode basketsAcid and alkaline copper bathsHigh-efficiency systems
Request Quote → Get Specs
Copper Profiles — Elliptical & Dog Bone Pakistan electroplating 05
≥99.99%Purity
Bar Anode

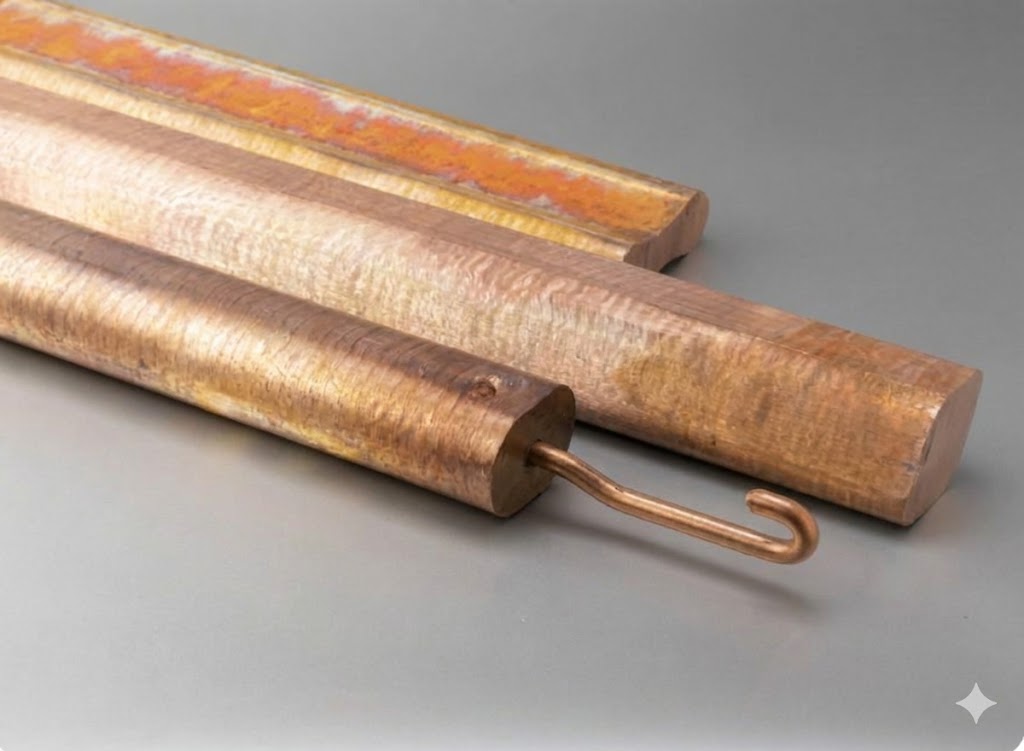

Copper Profiles — Elliptical & Dog Bone

Custom-shaped copper anodes for deep tanks and large electroplating systems. Elliptical or dog-bone shapes up to 3 m in length.

Chemical Symbol: Cu
Purity: Minimum 99.99% pure copper
Design Options: Elliptical or dog-bone shapes, tailored lengths up to 3 m.
Tailored for deep tanks and large electroplating installations
Drilling, tapping, and hooks for easy electrical connection
Custom lengths up to 3,000 mm
Applications
Deep plating tanksLarge-scale copper platingIndustrial installations
Request Quote → Get Specs
Copper Planks Pakistan electroplating 06
≥99.99%Purity
Flat Bar Anode

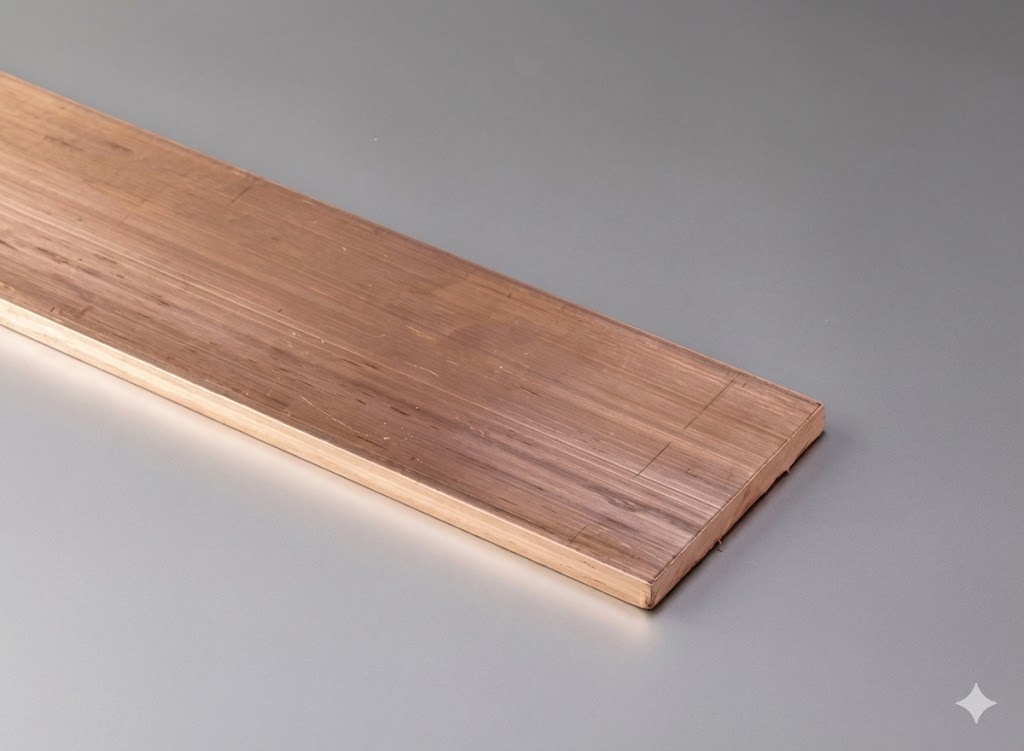

Copper Planks

Flat copper bars used as anodes in electroplating baths and current-supply applications. Standard 100 and 200 mm widths — lengths up to 6 m.

Chemical Symbol: Cu
Purity: Minimum 99.99% pure copper
Sizes: Standard widths of 100 mm and 200 mm (other sizes available).
Suitable for surface treatment lines and current supply
Standard widths and custom long lengths up to 6 m
Applications
Surface treatment linesCopper plating bathsCurrent supply applications
Request Quote → Get Specs
Copper Wire Pakistan electroplating 07
≥99.90%Purity
Flexible / Rigid Wire

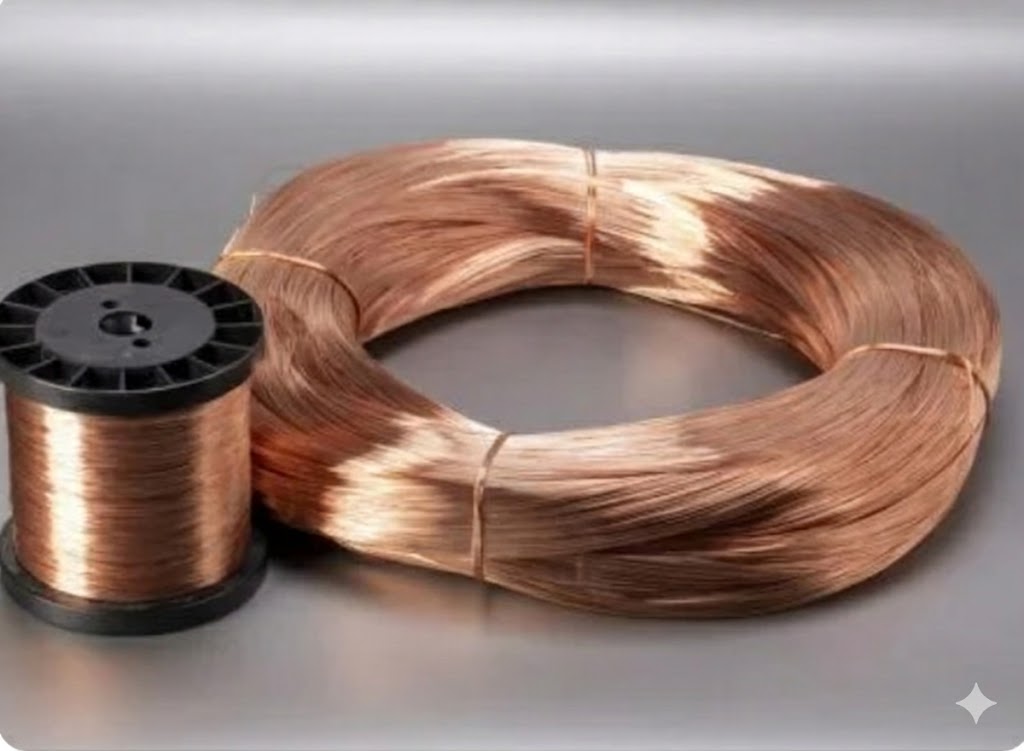

Copper Wire

High-purity copper wire in flexible annealed and hardened forms. Wide diameter range for fixtures, plating supports, and rigid anode hooks.

Chemical Symbol: Cu
Purity: Minimum 99.99% pure copper
Diameter Range: 0.4 mm–6 mm (custom sizes available)
Flexible annealed wire for fixtures and plating supports
Hardened wire for rigid hooks and structural parts
Wide diameter range 0.4–6 mm
Applications
Plating fixturesAnode hooksElectrical connectionsSurface finishing
Request Quote → Get Specs
Why Choose Our Copper Products

Consistent purity. Dependable performance. Every batch.

🏆
≥99.99% Purity

All copper anodes are produced from primary, high-purity copper for consistent, contamination-free plating deposits.

⚗️
3 Copper Types

Electrolytic, oxygen-free, and phosphorus-alloyed copper for different bath chemistries and deposit requirements.

📐
Multiple Forms

Cathodes, squares, cylinders, balls, profiles, planks, and wire — a form for every plating configuration.

🔧
Custom Dimensions

Profiles up to 3 m, planks up to 6 m, custom cathode sizes — all with drilling and hook options on request.

All Copper Products — Quick Reference

ProductPuritySize / Dimensions
Copper Cathodes≥99.99% Cu~1000×1000 mm · customPalletized
Copper Squares>99.99% Cu25·50·100 mm square25 kg bags/drums
Mini Cylinders≥99.99% Cu5–20 mm dia · 5–40 mm lengthBags/drums
Copper Balls>99.99% Cu15–60 mm dia10 kg bags
Elliptical/Dog Bone>99.99% CuCustom · up to 3,000 mmPalletized
Copper Planks>99.99% Cu100/200 mm wide · up to 6,000 mmOn request
Copper Wire>99.90% Cu0.4–6 mm diaCoils/spools
Common Questions

Copper Anodes — FAQ

What is phosphorus-alloyed copper used for?
−
Phosphorus-alloyed copper (P-Cu, typically 0.04–0.065% P) is preferred for bright acid copper plating and decorative copper undercoats. The phosphorus promotes a passive anode film that produces a brighter, smoother deposit compared to electrolytic copper — particularly important in decorative and high-finish applications.
What is oxygen-free copper?
+
Oxygen-free copper (OFC) has minimal oxygen content (<10 ppm O₂). This reduces oxidation and sludge formation in the plating bath, maintaining bath cleanliness and reducing maintenance frequency. Ideal for applications requiring high bath purity.
Are custom copper anode sizes available?
+
Yes. Copper cathodes can be cut and drilled to custom sizes. Elliptical profiles are available up to 3 m, planks up to 6 m — all with optional drilling, tapping, and hook installation. Contact us with your specifications.
Are copper anodes available from stock in Pakistan?
+
Yes. Libras Chemical stocks Copper Cathodes, Squares, Mini Cylinders, and Balls in Karachi with nationwide delivery. Custom profiles and large-format anodes are available on order. Contact us for pricing.
