Filtration

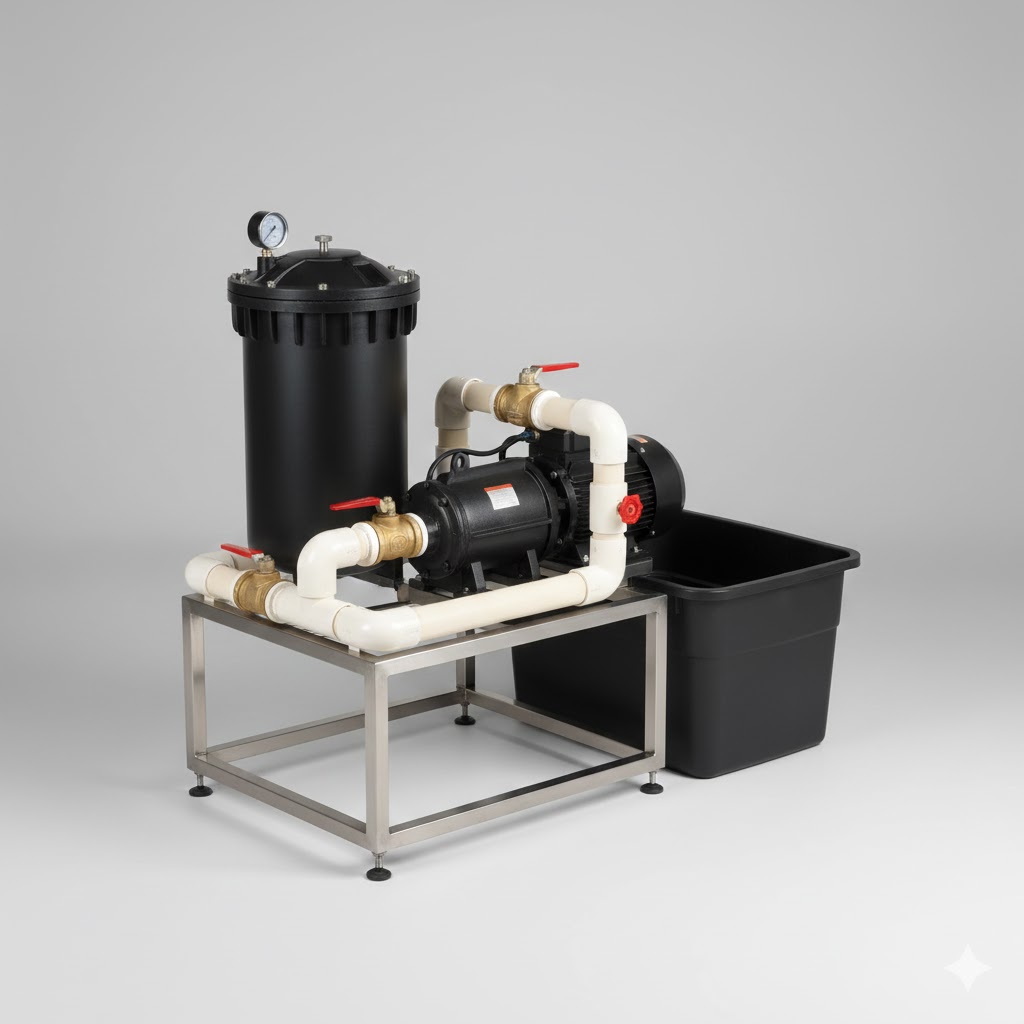

Pumps & Fluid Transfer Equipment
Overview:
Our selection of pumps is designed to meet diverse fluid handling needs in industrial operations, including chemical baths, plating lines, and wastewater systems.
Available Pump Types:
Magnetic drive pumps (leak-free design)
Mechanical and vertical pumps
Diaphragm and transfer pumps
Pneumatic and drum pumps
Centrifugal and dosing systems
Manual-operated units
Applications:
Ideal for circulating plating solutions, transferring liquid chemicals, dosing additives, and supporting filtration systems across surface treatment, chemical, pharmaceutical, and food industries.

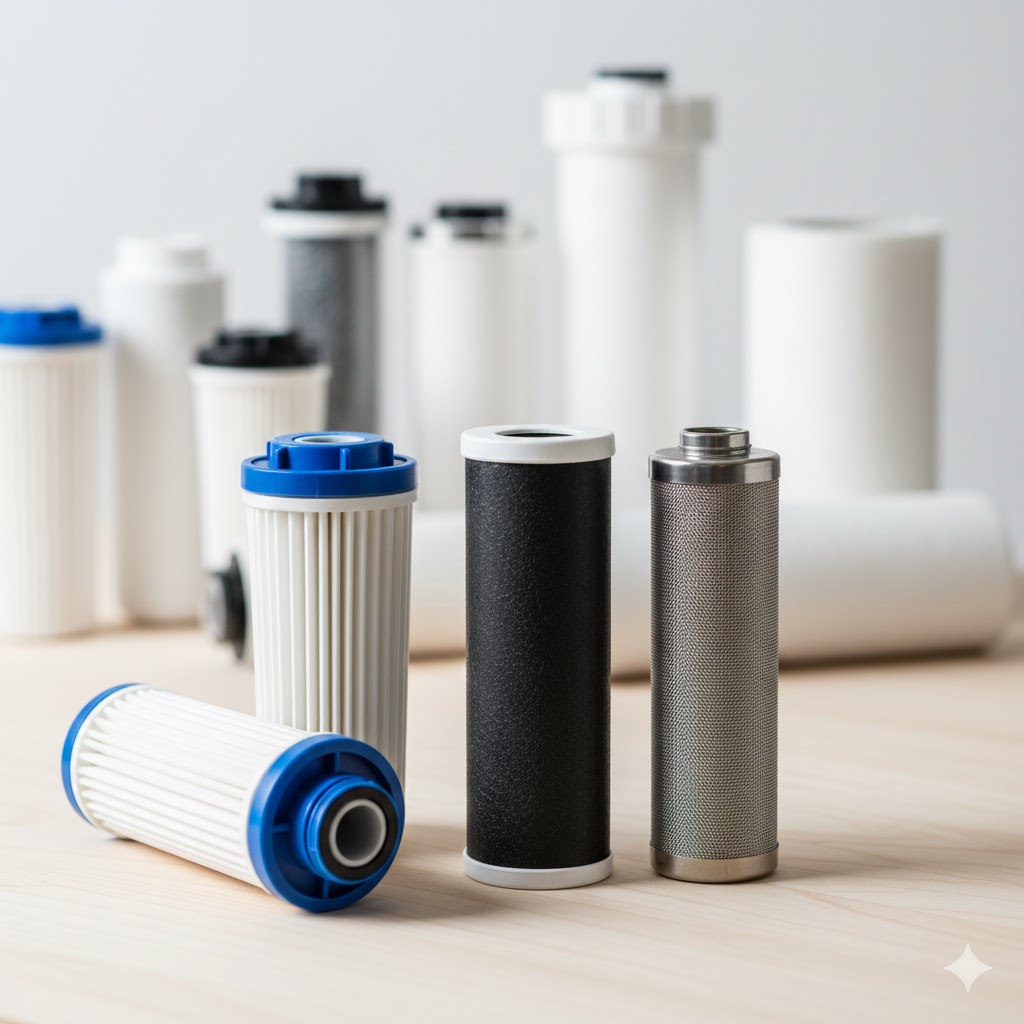

Filter Cartridges
Overview:
High-performance filter cartridges engineered to fit most standard filter housings, providing effective pre-filtration and main filtration for plating baths and process fluids.
Types & Options:
Polypropylene wound cartridges
Extruded absolute filters
Activated carbon cartridges
Pleated cartridges with expanded surface area
Key Specifications:
Standard sizes: 10″, 20″, 30″ (custom lengths available)
Filtration ratings: 1, 5, 10, 25, 50, 100 microns
Applications:
Used to remove particles, organic contaminants, and bath sludge in electroplating, chemical processing, potable water, wastewater, and industrial fluids.

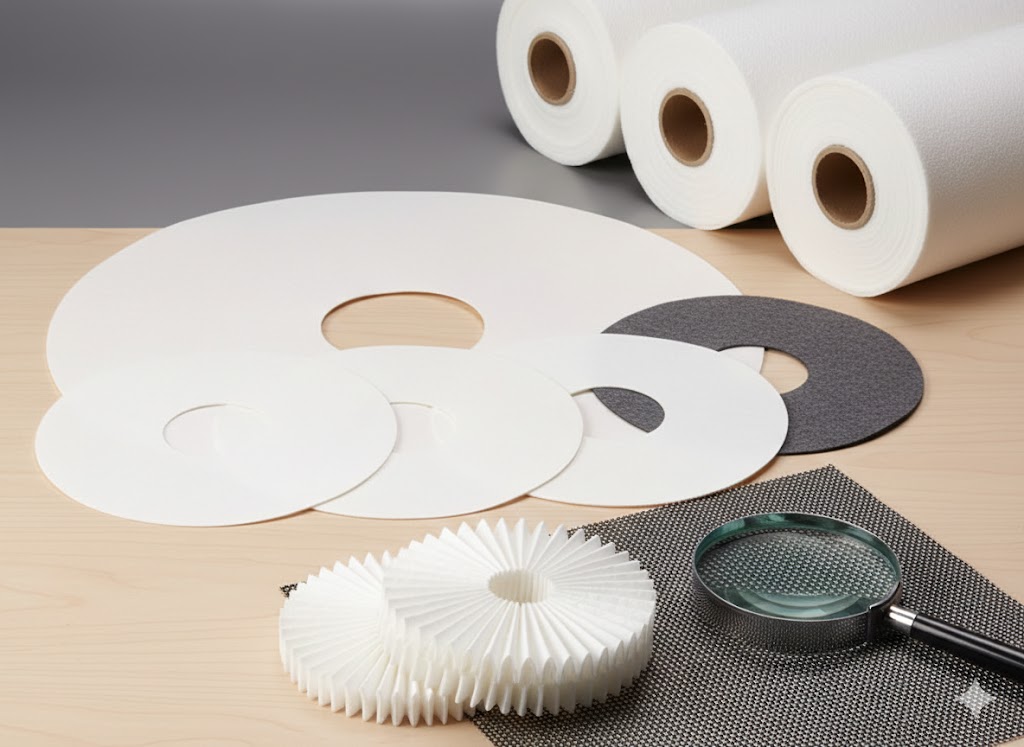

Filter Papers & Fabrics
Overview:
Filter media in a variety of materials and thicknesses for use in gravity, plate, and press filtration systems.
Media Types:
Thin, thick, and crepe filter paper
Cardboard-backed paper for structural support
Charcoal paper for removing organics
Polypropylene (PP), PVDF, or PTFE fabric discs
Standard Diameters:
195 mm, 205 mm, 258 mm, 300 mm, 456 mm (other sizes on request)
Applications:
Ideal for surface treatment baths, chemical filtration, pharmaceutical fluid purification, and water clarification tasks.

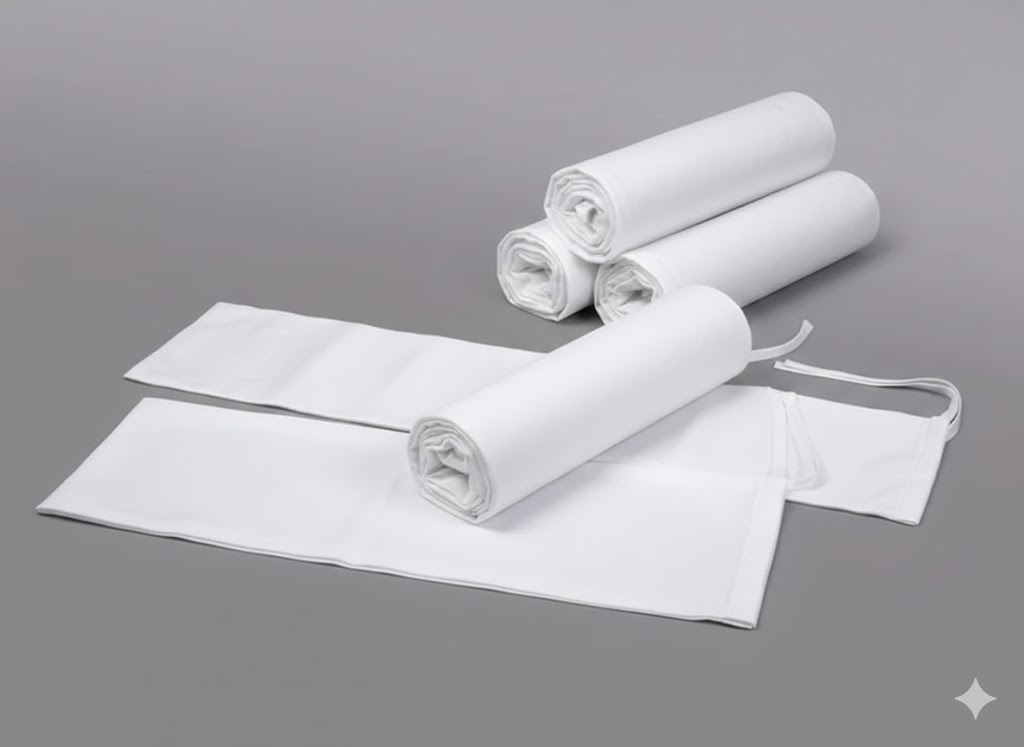

Anode & Plating Filter Bags
Overview:
Durable fabric bags designed to improve filtration in electroplating tanks by capturing debris and extending bath life.
Types:
Polypropylene anode bags
Disposable or reusable bags
Polyester fabric bags
Common Sizes:
650×130 mm up to 1050×230 mm (custom sizes available)
Fabric Weights: 210 g/m² – 600 g/m² (various options)
Use Cases:
Placed over anodes or around titanium baskets to enhance bath clarity and reduce drag-out of insoluble matter.

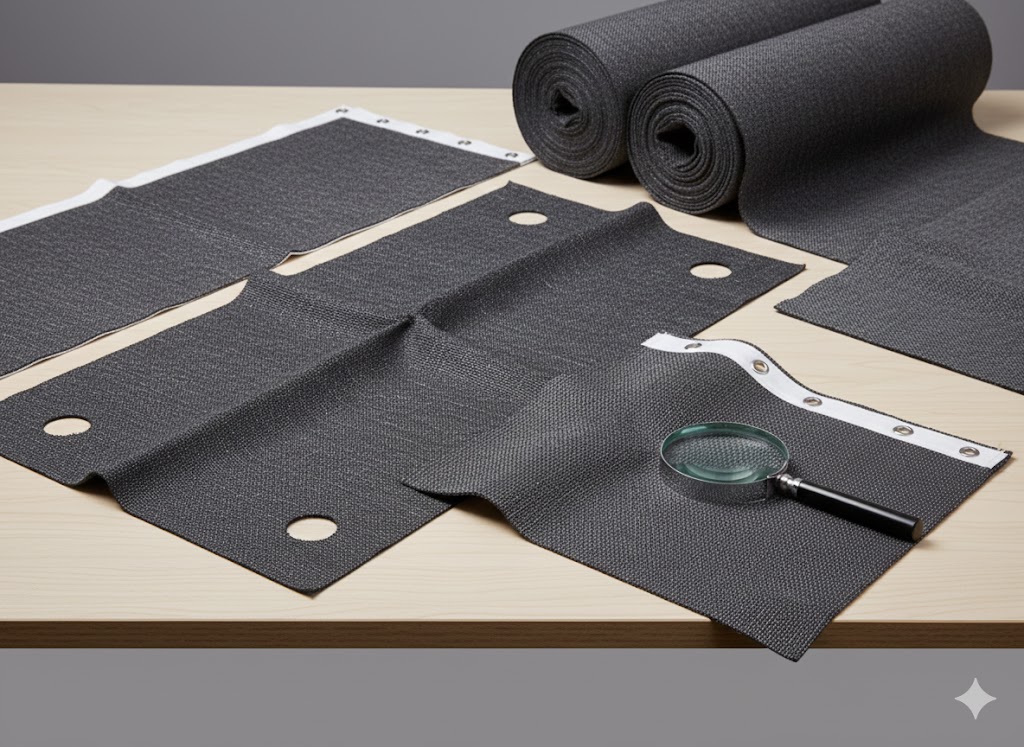

Filter Press Cloths
Overview:
Heavy-duty cloth media for industrial filter presses used in sludge dewatering and liquid-solid separation.
Types:
White polypropylene filter press cloth
High-performance black cloth for reduced cake adhesion
Tray Sizes:
250×250 mm up to 800×800 mm (custom sizing available)
Benefits:
Improves dewatering efficiency, reduces downtime, and prolongs cloth life in filtration plants and surface treatment facilities

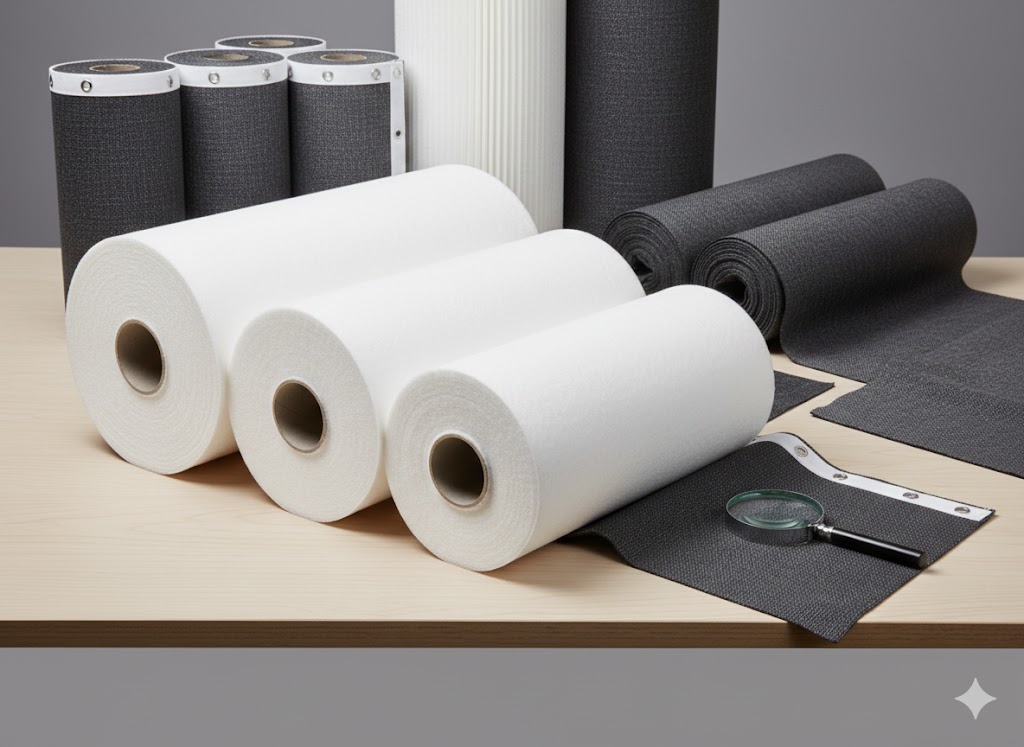

Filter Rolls
Overview:
Large filter media rolls for continuous filtration systems, belt filters, and custom cut-to-size applications.
Materials:
Polypropylene, nylon, polyester, PTFE
Standard Widths & Lengths:
Width: 330 mm – 1400 mm
Length: 100 – 250 meters
Filtration ratings: 10 µ – 100 µ (others on request)
Applications:
Used in fluid clarification, belt filtration, surface treatment lines, water purification, and industrial liquid processing

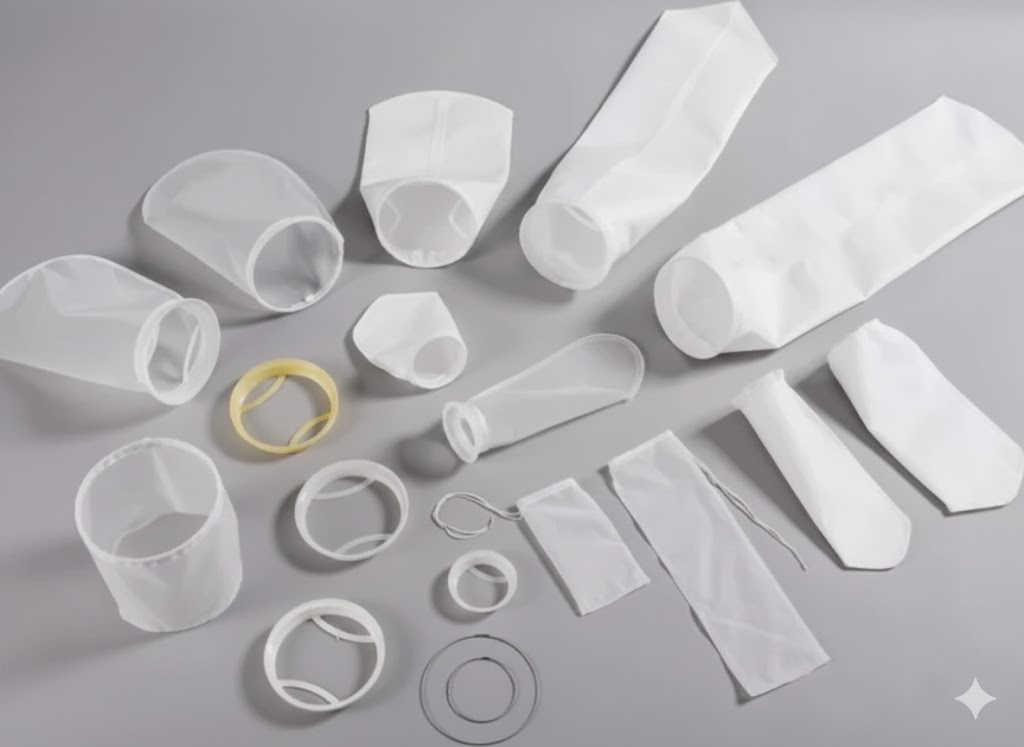

Custom Filter Bags & Industrial Filtration Media
Overview:
Made to order filtration bags in a wide range of materials and sizes to meet specialized industrial requirements.
Materials:
Polypropylene, nylon, polyester, felt, PTFE
Ring Options:
Thermo-welded plastic, galvanized steel, stainless steel, or custom designs
Filtration Ratings:
From ultra-fine (0.5 µ) up to 200 µ
Applications:
Suitable for electroplating, chemical processing, automotive paint systems, electronics manufacturing, water treatment, cutting oils, and general industrial filtration
Why Choose Our Filtration Products
Our filtration solutions are engineered to deliver efficient, reliable, and cost-effective performance across industrial fluid systems. With a wide range of media, cartridges, pumps, and custom options, we support better bath life, improved fluid quality, and lower maintenance costs in demanding environments.
